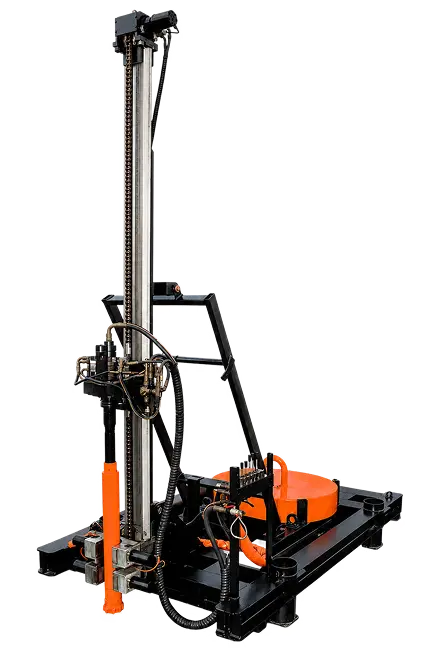

Raptor's diver-assist drill rig is operated by divers working directly on the seabed, supporting the rock-anchoring solutions delivered across nearshore, harbour and coastal sites.
Equipped with 3-metre extensions, drilling depth is adjustable to meet the required anchor depth, with the rig drilling anchor holes up to 100 mm in diameter.
Working the rig by hand on the seabed gives divers close control over how each hole is drilled and each anchor is set, which suits the kind of precise, smaller-scale fixings that harbour, marine-facility and coastal-stabilisation work calls for.
The 3-metre extensions are added as needed, so the same rig can be built up to suit different anchor depths across a single project rather than being tied to one fixed reach.
Built for the rock-anchoring operations delivered across nearshore, harbour and coastal sites.
Operated by divers working the rig directly on the seabed for precise placement in shallower water.
Equipped with 3-metre extensions so drilling depth can be adjusted to meet the required anchor depth.
Suited to diver-assisted operations in water depths to around 30 metres.
| Length OA | 2115 mm |
| Width OA | 3405 mm |
| Height OA | 4700 mm |
| Max. Drilling Diameter | 100 mm |
| Extension Capability | 3-metre extensions |
| Drilling Depth | Adjustable to required depth via extensions |
Diver-assisted drilling for nearshore, harbour and coastal anchoring.
